PE-TRA® Products
Double Colunm Horizontal Band Saw Family

 Automatic
NEW

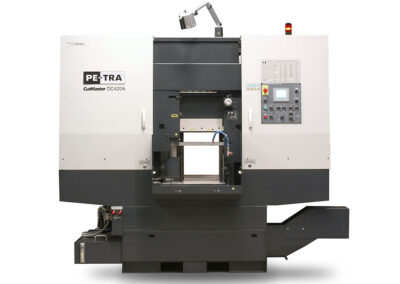

Model: CutMaster DC420A
Automatic Band Saw Machine:
An automatic Band saw Machine for mass production - 420 mm

New Generation Machine
Model: POWER DC300 CNC
Full Automatic Band Saw Machine:
for Heavy duty roductions
Download Brochure
New Generation Machine
Model: CutMaster DC300A
Automatic Band Saw Machine:
An automatic Machine for mass production

Download Brochure
New Generation Machine
 Model: CutMaster DC420A
Automatic Band Saw Machine:
An automatic Band saw Machine for mass production - 420 mm
Download Brochure
Model: CutMaster DC300A INDIA
Automatic Band Saw Machine:
An automatic Band saw Machine for mass production - 300 mm

PRODUCED in INDIA for INDIA by
PETRA Machines India Pvt. Ldt.
Download Brochure

 Semi - Automaic
 New Generation Machine
Model: ToolMaster DC300
Semi -Automatic Band Saw Machine:
for Toolmakers

Download Brochure
New Generation Machine

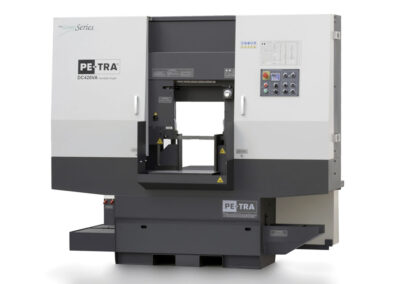

Model: ToolMaster DC420 VA
Semi -Automatic Band Saw Machine Variable Blade Approach Angle:
for Toolmakers

Download Brochure
New Generation Machine

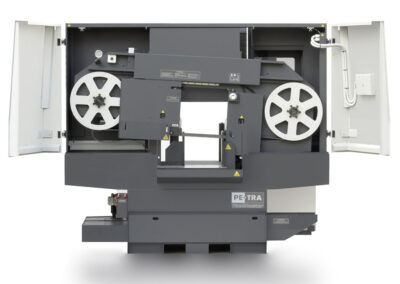

 Model: ToolMaster DC420
Semi -Automatic Band Saw Machine:
for Toolmakers
Download Brochure
Model: ToolMaster DC300XL
 Semi -Automatic Band Saw Machine:
Machine with extended capabilities
Download Brochure

Special Purpose Machines

NEW

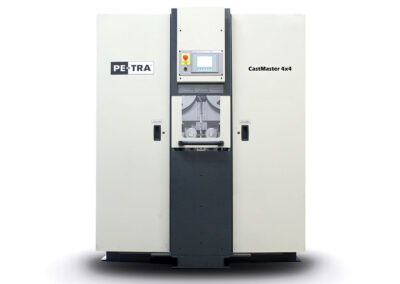

Model: CastMaster 4x4
Aluminum Runner & Riser cutting machine:
CastMaster is an ultimate result of PE-TRA’s Engineers innovation in Aluminum Runner & Riser cutting, which cuts with ease and most importantly ‘WITH DUE SAFETY’, as required by CE norms.

Model:  DC300RT
Automatic Band Saw Machine with rottating table:
Aluminium Runner Riser Cutting Machine for Automobile Component Manufacturers
VIDEO

Model: DC300 INSERT
Automatic Band Saw Machine:
Aluminium Runner Riser Cutting Machine for Automobile Component Manufacturers
VIDEO

Model: DC300A FADI
Automatic Band Saw Machine:
speciali made for Pleuco Ingot cutting
VIDEO
Model: DC300A KUKA
Automatic Band Saw Machine:
speciali made for Silicon Ingot cutting


Why PE-TRA® Band Saw Machine?
Please contact us for more information on how PE-TRA Bandsaw could help you solve your specific metal cutting needs. Please click here to access our contact information . We would be pleased to discuss all metal cutting questions and other technical issues with you.

Automatic Bandsaw Machine
CutMaster DC300A             Download Brochure
Machine Futures
Technical Details Standard Items
Optional Accessories Green Mission
  Brochure
PE-TRA CutMaster Bandsaw Machines is engineered with high-volume, automated metal cutting task in mind. Every engineering detail is carefully studied and benchmarked against the competition in its class.
Most important
PE-TRA it is designed and built for
High speed cutting with Carbide blades

CutMaster Band saw machines are True Dual Column, automatic, heavy duty production band saws. The original Dual Column design assures structural rigidity. The Patented solution for precise, parallel movement of the frame including Ball Rail System on both columns provide superior fine movement of the frame eliminating both the influence of the center of gravity and cutting forces on the frame while greatly reducing the total weight of the machine and also minimizing the inherent vibrations. This assures an “advantage by design” in comparison to its competitors.
BACK
 PE-TRA Cuts material HcHCr hardness 60Rc


Why PE-TRA® Band Saw Machine?

Download Brochure
Machine is equipped with blade guards and awareness barriers for safety purposes according to CE norm.

Please contact us for more information on how PE-TRA CutMaster DC300A could help you solve your specific metal cutting needs. Please click here to access our contact information . We would be pleased to discuss all metal cutting questions and other technical issues with you.


PE-TRA® Solutions
Production efficiency is a key to the success

Production cutting systems
and turnkey solutions




Production efficiency is a key to the success
Most of the metal processing needs metal cutting as first step.
Though it is important, it was least valued till date. With increase in material prices and many of other steps being optimized the cutting comes to the centre stage. Now industries  with high cutting demands are paying lot of attention to this stage.

What's new?
PETRA Machines Production Cutting Systems are designed for large scale cutting with simplicity and reliability according to specific cutting needs, i.e. cutting capacity of per day or per month basis and carry guaranteed low Cost-per-Cut.(*)
It offers increased productivity and  labor efficiency while providing full control and monitoring of error management and control of machines, preventive  maintenance, workflow and tool management from local or remote desktops.

Approach
PETRA Turnkey solutions take into account every aspect of the operation and guarantees low Cost-per-Cut(*) with integrated approach of a scientifically designed facility with PETRA Band saw machines and tools.

Features
Optimum utilization of working space.
Optimal cutting parameters for specific material of cutting speeds, feeds.
Recommends cutting oils.
Recommends cutting tool.
Best utilization of material handling facilities, by designing easier,   smoother and safer work layouts.
Design cutting processes to save on material.
Optimize utilization of man power.

(*With recommended number of machines of PETRA make, tools and other facilities as designed for specific application. Requires extensive testings of material being cut.)
Error management and control (EMC): a real time online machine error management system provides machine status and nature of error to take corrective actions by supervisory staff.
Cell Management module (CM): for monitoring every machine in a cell and provides real time data about material designation, blade identification and operator identification.
Using PE-TRA Production cutting system you save by:
1.Material by the use of special fixtures and process.

2.Tool cost by using specific cutting parameters,  coolant and tool variant.

3.Organize man power utilization in a scientific way and reduces man power costs as well as improves labor efficiency.

4.Keeping tabs on all operations, control and monitor of issuance of correct consumables in correct condition

5. Keeping inventory to minimum.

6. Keeping downtime to minimum.

7. Rejections are the least, as user can take corrective steps by planning in advance by monitoring real time data and scrutinizing the past records.

8. Automatic preventive maintenance of system

9. Managing  remotely by the senior executives
Added advantages of PETRA production cutting system:
Simplicity in design: A simple design of layout and monitoring & control management system is easy to understand, operate and maintain. Machines are easy to operate with all ergonomic controls. Cutting centre management system is simple, menu driven and easily understandable.

Time Savings: As system is tailor made, it reduces idle time to minimum. Every activity and event is channelized and documented, makes it the most efficient production cutting system

Material Savings: PETRA production cutting system use fixture, especially for the specific size of the bar, ensures the least remnant length (may be 2 to 5 mm). In a standard cutting operation, remnant length may be anywhere between 100 to 200 mm.

Consistency: As system is designed for specific sizes, material result in a consistent cut length with nearly even cutting accuracies and cutting time over the whole life of the tool.

Inventory Reduction: As system is flexible in operation, management and control one can easily reduce or maintain inventories. Due to the availability of real time data, one can foresee and plan its production schedules.
Siemens PLC equipped with LAN module for data communication with PETRA production cutting centre management system
Real time cutting data on display to take quick decisions over speed, feed and tool change.


PE-TRA® Products
Double Colunm Horizontal Band Saw Family

 Semi - Automatic
New Generation Machine
Model: ToolMaster DC300
Semi -Automatic Band Saw Machine:
for Toolmakers
Leasing facility available
Download Brochure
New Generation Machine
Model: ToolMaster DC420
Semi -Automatic Band Saw Machine:
for Toolmakers
Leasing facility available
Download Brochure
New Generation Machine
 Model: ToolMaster DC420VA Variable blade approach angle
Semi -Automatic Band Saw Machine:
for Toolmakers
Leasing facility available
Download Brochure
Model: ToolMaster DC300XL
Semi -Automatic Band Saw Machine:
Machine with extended capabilities
Leasing facility available
Download Brochure
Why PE-TRA® Band Saw Machine?
Please contact us for more information on how PE-TRA Bandsaw could help you solve your specific metal cutting needs. Please click here to access our contact information . We would be pleased to discuss all metal cutting questions and other technical issues with you.


PE-TRA® Products
Double Colunm Horizontal Band Saw Family

 Automatic
New Generation Machine
Model: POWER DC300 CNC
Full Automatic Band Saw Machine:
for Heavy duty roductions
Leasing facility available
Download Brochure
New Generation Machine
Model: CutMaster DC300A
Automatic Band Saw Machine:
An automatic Machine for mass production
Leasing facility available
Download Brochure
New Generation Machine
 Model: CutMaster DC420A
Automatic Band Saw Machine:
An automatic Band saw Machine for mass production - 420 mm
Leasing facility available
Download Brochure
Model: CutMaster DC300A
Automatic Band Saw Machine:
An automatic Band saw Machine for mass production - 300 mm
Leasing facility available
Download Brochure
Why PE-TRA® Band Saw Machine?

Download Brochure
Please contact us for more information on how PE-TRA Bandsaw could help you solve your specific metal cutting needs. Please click here to access our contact information . We would be pleased to discuss all metal cutting questions and other technical issues with you.

Fully Automatic Bandsaw Machine
POWER DC300 CNC            Download Brochure
Machine Futures
Technical Details Standard Items
Optional Accessories Green Mission
  Brochure
PE-TRA POWER DC300 CNC is  a high performance, 24 x7,  fully automatic  band saw machine. Machine can be programmed for 10 batches though touch screen.
Most important
PE-TRA it is designed and built for
High speed cutting with Carbide blades

PETRA POWER DC300 CNC is built on its proven PETRA platform of Ball Rail System on both columns to provide superior fine movement of the frame eliminating both the influence of the center of gravity and cutting forces on the frame, in this high speed and high volume cutting scenario.
This high-tech machine comes with variety of unique features like automatic hydraulic lock of movable blade guide arm, a Slip Free
Bundle clamp, which has a Dual side supported design, enables you to clamp the bars from small to big diameter in bundle safely and efficiently. A real time display of Cutting rate and Band speed to monitor and control the operation at moment.

 PE-TRA Cuts material HcHCr hardness 60Rc

It's a neatly covered band saw machine with touch screen display for the interactive data inputs and outputs. A simple menu is designed, which can be understand by any Band saw machine operator, makes it the most simple and easy to operate Band saw machine.
With real time cutting rate display, an operator can easily maneuver the whole cutting operation. Cutting lengths can be set for various batches of different sizes and shapes of job at ease through Touch screen. A maximum of ten number of cutting lengths can be set. Machine takes the multi-indexing parameter automatically and has a single feed stroke of 400 mm.
Length setting arrangement used in PETRA POWER DC300CNC, a Stepper drive  with brake coupled with Ball screw, which guarantees consistency in length even after years of working , unlike other devices, whose efficiency gets affected due to coolant, chips or dust. PETRA DC300A POWER length setting system, actually sets the target / sensor at desired length instead of moving the job and hence PETRA able to guarantee consistency in cut lengths.

PETRA POWER DC300CNC is designed for full capacity cutting irrespective of material (100% capacity utilization); hence it is equipped with a 4 kW helical drive.

To keep the machine's coolant system free from metal dust in a 24x7 cutting environment, PETRA develops a new coolant cum filtration system for this machine model, which keeps the coolant free of metal dust to flow through the system.
To keep the machine's work area free from chips, special coolant nozzles are installed at strategic locations, directs most of the chips to flow into the chip conveyor, making it one of the cleanest band saw machine.
*
*
Why PE-TRA® Band Saw Machine?

Download Brochure
Machine is equipped with blade guards and awareness barriers for safety purposes according to CE norm.

Please contact us for more information on how PE-TRA POWER DC300CNC could help you solve your specific metal cutting needs. Please click here to access our contact information . We would be pleased to discuss all metal cutting questions and other technical issues with you.
Automatic Bandsaw Machine
CutMaster DC300A
CutMaster DC420A               Download Brochure
Machine Futures
Technical Details Standard Items
Optional Accessories Green Mission
  Brochure
PE-TRA CutMaster Bandsaw Machines is engineered with high-volume, automated metal cutting task in mind. Every engineering detail is carefully studied and benchmarked against the competition in its class.
Most important
PE-TRA it is designed and built for
High speed cutting with Carbide blades

CutMaster Band saw machines are True Dual Column, automatic, heavy duty production band saws. The original Dual Column design assures structural rigidity. The Patented solution for precise, parallel movement of the frame including Ball Rail System on both columns provide superior fine movement of the frame eliminating both the influence of the center of gravity and cutting forces on the frame while greatly reducing the total weight of the machine and also minimizing the inherent vibrations. This assures an “advantage by design” in comparison to its competitors
 PE-TRA Cuts material HcHCr hardness 60Rc


Why PE-TRA® Band Saw Machine?

Download Brochure
Machine is equipped with blade guards and awareness barriers for safety purposes according to CE norm.

Please contact us for more information on how PE-TRA CutMaster DC300A could help you solve your specific metal cutting needs. Please click here to access our contact information . We would be pleased to discuss all metal cutting questions and other technical issues with you.

DC420VA Variable Blade approach angle - Semi-Automatic Bandsaw
 Machine Features
 Technical details
 Standard Items
 Optional Accessories
 Green Machine

PE-TRA cuts AMPCO21

 Why PE-TRA®Band Saw Machine?                          read more...

A unique concept in Band sawing, PETRA ToolMaster DC420VA Variable blade approach Angle Band saw machine for Solid as well as Sections cutting. A compact and slim design makes it the most versatile machine in this category. Attack angle of the blade can be set at a touch of button for Solids as well as Hollow sections to get the optimal performance.
 PETRA Band saw machine model DC420VA ToolMaster is designed to offer more flexibility to Tool makers, Steel traders or in general engineering  workshops, where variety of jobs needs to cut, ranging from rounds, plates, hex to Tubes, Angles, I-beams etc.
This machine model is designed with a concept of change in blade approach angle as per cutting application. Means Blade approach angle can be changed from 0 degree to 3,5 degree, if someone want to cut Angle or I-Beam or tube/Pipe. Even for solids, a blade approach angle of 0 degree or 3,5 degree can be selected based on its shape.

Blade approach angle can be changed with a just selector switch and whole arm, along with blade guides adjust itself to respective blade angle.

Movement of the blade guide is automatic and moves along with the vise.

This machine model has a capacity of 420 mm x 420 mm and is equipped with load / force mechanism on both blade guides, to negotiate cutting of wide size solid jobs and to control cutting conditions at entry and exit of hollow sections.

Machine arm movement is based on PETRA's dual column platform, which ensures stick slip free movement and offers smooth and vibration free cutting environment. Its True Dual Column, design assures structural rigidity. The Patented solution for precise, parallel movement of the frame including Ball Rail System on both columns provide superior fine movement of the frame eliminating both the influence of the center of gravity and cutting forces on the frame.

A strong engine of 7,1 kW Helical drive generates more than enough power for cutting a 420 x 420 mm area with optimal cutting parameters.

A robust construction of integrated support table with rollers, makes it easy to set a heavy duty job.

A well designated control consol on the front door of this neatly covered machine, makes operator more comfortable.
 Technical details
 Machine Features
Machine is equipped with blade guards and awareness barriers for safety purposes according to CE norm.

Please contact us for more information on how PE-TRA DC3420V  Variable Angle ToolMaster could help you solve your specific metal cutting needs. Please click here to access our contact information . We would be pleased to discuss all metal cutting questions and other technical issues with you.

Semi - Automatic Bandsaw Machine
ToolMaster DC300
ToolMaster DC420              Download Brochure
Machine Futures
Technical Details Standard Items
Optional Accessories Green Mission
  Brochure
PE-TRA ToolMaster is engineered for metal cutting task where there is no need for large scale automated cutting and flexibility for ad-hoc cuts is preferred. Every engineering detail are carefully studied and benchmarked against the competition in its class.
Most important
PE-TRA it is designed and built for
High speed cutting with Carbide blades
It is a True Dual Column heavy duty band saw. The original Dual Column design assures structural rigidity. The Patented solution for precise, parallel movement of the frame including Ball Rail System on both columns provide superior fine movement of the frame eliminating both the influence of the center of gravity and cutting forces on the frame while greatly reducing the total weight of the machine and also minimizing the inherent vibrations. This alone assures an “advantage by design” in comparison to its competition.

The end result is a very precise cut and quality of the cut surface.
Why PE-TRA® Band Saw Machine?

Download Brochure
Machine is equipped with blade guards and awareness barriers for safety purposes according to CE norm.
Please contact us for more information on how PE-TRA ToolMaster DC300 could help you solve your specific metal cutting needs. Please click here to access our contact information . We would be pleased to discuss all metal cutting questions and other technical issues with you.

DC420V Optional Accessories

►DC420VA Optional Accessories
►ROLLER TABLE:

►LASER LINE POINTER:
►MICROMIST COOLANT ATTACHMENT:
►PHOTO-SENSOR FOR AN ADDED SAFETY:
►INDUSTRIAL VACCUM CLEANER:
For cleaning the working space.
 ►Contact us for more information

DC420V ToolMaster Standard Features

►PE-TRA Semi-automatic Band saw machine DC420VA Variable Blade approach Angle ToolMaster- Standard Items and Optional Accessories

Basic Machine includes the following standard items:
1.
 Cold Drawn Solid columns precisely machined for accurate results & speed.
2. Power transmission to the saw thru Helical Drive, 4 KW motor with 5,5 Kw inverter.
3.
 Blade speed selection thru AC variable frequency drive (20-110 m/min)
4. High efficiency Hydraulic Power Pack
5. Hydraulic Main vise
6. State of art Hydraulic Blade tensioning
7. Electrically driven swarf conveyor
8. Infinitely variable feed control valve for setting the cutting rate
9. Load setting devise at both blade guides.
10. Direct shaft mounted blade cleaning Motorized wire brush, mounted at pre-designed angle
11. System control by Siemens.
12. Selector switch for selecting blade approach angles of 0°and 3,5°for different applications.
13. Automatic blade guide movement with the main vise. Blade guide movement is on LM guide ways.
14. Specially designed fixed blade guide
15. Ergonomically designed Electrical Control Panel
16. Automatic Machine OFF, in case of blade breakage
17. All safety features as per CE requirements.
  Optional Accessories:
1.

Extended roller table 3 m long with coolant tray

Extended lenght over 3 meters ( price per 1 meter )
2.
Laser Line Pointer
3.
Machine Lamp
  Components Makes:

1. Motor with Helical Gear Box  - Watt Drive
2. AC variable Drive  - Hitachi
3. Hydraulic Pump and Valves  - Kladivar Parker
4. Sequential Control  - Siemens
  ►Contact us for more information

PE-TRA Bandsaw Machine Features
Saw Bed:

Designed & engineered to perfection with vision & experience, Petra Bandsaw's Fabricated steel base is manufactured from Laser Cut Sheet Metal. All bed parts are pressed & welded neatly. Every care is taken to make it rigid by supporting it with beam at required points. Column base (very near to centre of gravity, makes it most stable machine) machined & milled accurately for the lifelong error free performance.
Blade approach angle:
This feature facilitates to cut solids as well as Hollow sections with an equal ease. Blade approach angle of 0 degree or 3,5 degree can be chosen through selector switch on the control console, as per cutting application requirement.
Power Transmission:
Looking to its multifaceted challenging cutting applications  ranging from 420 x 420 solids to I beams, angles, Tubes etc, using Bimetal as well as Carbide Blades, DC420V ToolMaster is equipped with a powerful helical geared drive of 7,1 Kw makes it the most efficient machine in this catagory. It is  integrated with a 5,5 kW Inverter for infinitely variable blade speeds.
Columns:

Cold drawn solid columns precisely machined for accurate results & speeds. These rectangular columns give better stability while cutting, because of its perfect structural design. Linear guides are mounted outward face of the columns enhances cutting feeds to the recognition levels. A Rack Pinion rail on the rear face eliminates both the influence of centre of gravity shift & cutting forces, which ultimately improves the overall performance of the machine.
Blade tensioning:
Tensioning is powered by hydraulic with easy to operate controls. Allows for very quick and convenient blade change A state of art hydraulic blade tensioning arrangement, calibrated for the required tension in the blade & hence avoiding undesirable stresses in the blade, which improves the tool life.  Its well engineered design makes it possible to align the wheels easily if needed.
Blade guide system:

Automatic movement of movable blade guide along with main vise. Movable blade guide moves on wide and strong Linear motion guideway,which provides large area of contact and highly engineered assembly, eliminates vibrations in movable blade guide. During blade attack angle change, movable blade guide as well as fixed guide adjust itself to the correct location automatically.Both blade guides are straight having no cantilever joints, correctly aligned with the cutting line & hence guiding the blade to cut straight. Also blade guide slot is pre-designed & defined which allows the smooth blade movement, eliminating vibrations & achieves taper free cuts. No gap setting required for the carbide tip, while inserting the blade.The carbide tips & gap is pre-designed & for life.
Wire Brush:
Motorized & shaft mounted, fitted at predesigned angle.Assembly does not have any coupling & hence no maintainence.
Band Wheels:
This highly engineered machine model again comes as a winner in terms of price -performance ratio due to lot of unique features it has , along with long blade twisting length. VERY important for the durability of blades. Solid Driver & driven wheels are plasma cut to the size & precisely machined grooves at the surface gives required grip to the blade.
Hydraulics:
Powered by 0,75 kW, 6 l/min pump, Kladivar-Parker. During cutting the hydraulic system is idle which keeps the oil temperature at environmental level at all times and saves electricity. An efficient hydraulic system with 24V solenoid valves having LED results in easy diagnose of the problem at first hand, if occurs. Also it is saving the energy as pump goes off during feed & therefore maintaining oil quality for the longer periods.
Front discharge table:

For easy handling of cut pieces a solid plate table, 520 mm in length, is bolted on to machine base in front of the front clamping vise. It is fully coolant panned to return coolant to the machine.
Cutting Pressure / Feed rate:

Independent load mechanism on left and right blade guides controls the cutting conditions and load over the blade at both ends.The maximal cutting force is adjustable and automatically maintained at set level with built-in highly reliable, maintenance-free hydro-mechanical control system. The feed rate is adjustable through a front-end operated valve on the fixed guiding arm. Operator cannot damage the blade under normal operation. A well engineered Hydraulic Feeding system with a flexibility to adjust cutting force for a particular cutting application makes it an ideal machine with an enhanced tool life. This feature protects the tool from undue cutting pressures & saves the costly tool.
Chip Conveyor:
Chips are removed from cutting area to easy-to-empty container with automated chip conveyor Chips dry out returning the coolant to the system before released to chip tank. Coolant and chips are fully separated.
Control Panel:
Ergonomically designed control panel with well designated control keys and switches is conveniently located on the front door.
Integrated support table:

An integrated heavy duty 800 mm long support table facilitates easy setting of heavy jobs.
Coolant system:
Coolant tank is equipped with chip filteration and metal dust arrest system, keeps the down time low. Easy to clean tank, integrated with chip conveyor makes it possible to eaisly clean chip conveyor housing also.
►Technical details DC420VA Vaiable Blade approach Angle - ToolMaster
 Machine Features
 Standard Items
 Optional Accessories

 PE-TRA cuts AMPCO21
 An ultimate performance by PET-RA DC300A CutMaster

  Basic specifications:
Model DC420VA Variable blade approach angle ToolMaster
Cutting Capacity
 Round  420 mm
 Rectangular  420 x 420 mm
Drive Motor
 		4 kW with 5,5 kW inverter
Hydraulic Motor  0,75 kW, 6 l/min
Coolant Motor  0,18 kW
Hydraulic oil capacity  8 l
Bandwheel Diameter  500 mm
Blade Speeds  20 – 120 m/min Inf. variable speed
Blade Size  4975 x 34 x 1,1 mm
Coolant Capacity  80 l , recirculating
Blade tensioning
  Hydraulic
Blade approach angle
  0 / 3,5 degree
Integrated support table length
  800 mm
Front Table
  520 (L) x 330 (W) mm
System Control
  Siemens S7-1200 PLC with  4" display
Size
 		 2400 x 2000 x 1350 mm
Net Weight  17500 N
Blade approach angle, Power Transmission and Blade tensioning system:
This feature facilitates to cut solids as well as Hollow sections with an equal ease. Blade approach angle of 0 degree or 3,5 degree can be chosen through selector switch on the control console, as per cutting application requirement.
Looking to its multifaceted challenging cutting applications  ranging from 420 x 420 solids to I beams, angles, Tubes etc, using Bimetal as well as Carbide Blades, DC420VA ToolMaster is equipped with a powerful helical geared drive of 7,1 kW makes it the most efficient machine in this catagory. It is  integrated with a 5,5 kW Inverter for infinitely variable blade speeds.

Tensioning is powered by hydraulic with easy to operate controls. Allows for very quick and convenient blade change.A state of art hydraulic blade tensioning arrangement, calibrated for the required tension in the blade & hence avoiding undesirable stresses in the blade, which improves the tool life.  Its well engineered design makes it possible to align the wheels easily if needed.
Automatic movement of movable blade guide along with main vise. Movable blade guide moves on wide and strong Linear motion guideway,which provides large area of contact and highly engineered assembly, eliminates vibrations in movable blade guide. During blade attack angle change, movable blade guide as well as fixed guide adjust itself to the correct location automatically.Both blade guides are straight having no cantilever joints, correctly aligned with the cutting line & hence guiding the blade to cut straight. Also blade guide slot is pre-designed & defined which allows the smooth blade movement, eliminating vibrations & achieves taper free cuts. No gap setting required for the carbide tip, while inserting the blade.The carbide tips & gap is pre-designed & for life.
Hydraulic system:
Powered by 0,75 kW, 6 l/min pump, Kladivar-Parker. During cutting the hydraulic system is idle which keeps the oil temperature at environmental level at all times and saves electricity. An efficient hydraulic system with 24V solenoid valves having LED results in easy diagnose of the problem at first hand, if occurs. Also it is saving the energy as pump goes off during feed & therefore maintaining oil quality for the longer periods.
Independent load mechanism on left and right blade guides controls the cutting conditions and load over the blade at both ends.The maximal cutting force is adjustable and automatically maintained at set level with built-in highly reliable, maintenance-free hydro-mechanical control system. The feed rate is adjustable through a front-end operated valve on the fixed guiding arm. Operator cannot damage the blade under normal operation. A well engineered Hydraulic Feeding system with a flexibility to adjust cutting force for a particular cutting application makes it an ideal machine with an enhanced tool life. This feature protects the tool from undue cutting pressures & saves the costly tool.
Clamping:
Main vise has a heavy duty construction for clamping the job and is coupled with movable blade guide, hence always keeping gap between workpiece and blade guide to minimum. For easy handling of cut pieces a solid plate table, 520 mm in length, is bolted on to machine base in front of the front clamping vise. It is fully coolant panned to return coolant to the machine.
An integrated heavy duty 800 mm long support table facilitates easy setting of heavy jobs.
Cooling and chip removal:
Coolant tank is equipped with chip filteration and metal dust arrest system, keeps the down time low. Easy to clean tank, integrated with chip conveyor makes it possible to eaisly clean chip conveyor housing also.
Great care has been taken to remove the chips efficiently and in general to keep the machine as clear of chips as possible. Chips are removed from cutting area to easy-to-empty container with automated chip conveyor. The conveyor is activated at the start of the machine and runs contineously for the best cleaning. Chips and coolant are separated into two tanks.
Operation and safety:
Ergonomically designed control panel with well designated control keys and switches is conveniently located on the front door.
The saw may be operated in semi or fully automatic mode in which the automatic cutting cycle is synchronized with bar feed mechanism and clamping action.
The saw will automatically shut off in case that the blade breaks.
System control is provided by SIEMENS. Clear layout and orderly marked wiring facilitates user friendly servicing.
Machine is equipped with blade guards and awareness barriers for safety purposes according to CE norm.
Please contact us for more information on how PE-TRA DC300A CutMaster could help you solve your specific metal cutting needs.

Please click here to access our contact information . We would be pleased to discuss all metal cutting questions and other technical issues with you.
►PETRA CutMaster-Automatic Band Saw machines - Standard Items and Optional Accessories

Basic Machine includes the following standard items:
1.
 Cold Drawn Solid columns precisely machined for accurate results & speed.
2.
 Blade speed selection thru AC variable frequency drive (20-110 m/min)
3. High efficiency Hydraulic Power Pack
4. Hydraulic Main vise & shuttle vise
5. State of art Hydraulic Blade tensioning
6. Electrically driven swarf conveyor
7. Infinitely variable feed control valve for setting the cutting rate
8. Electronic arm height limiter
9. Direct shaft mounted blade cleaning Motorized wire brush, mounted at pre-designed angle
10. Cycle sequencing thru PLC (Siemens make)
11. Real time Feed rate and cutting rate display
12. Length setting thru Mechanical digital device having 0.1mm least count
13. Auto Indexing shuttle of stroke length 430mm & synchronised with auto cycle
14. Adjustable dovetail type heavy duty movable blade guide with internal coolant flow
15. Specially designed fixed blade guide
16. Ergonomically designed Electrical Control Panel
17. Automatic Machine OFF, in case of blade breakage
18. All safety features as per CE requirements.
  Optional Accessories:
1. Helical drive with 4 KW motor & 4KW invert (For DC300A model only)
2.

Extended roller table 3 m long with coolant tray

Extended lenght over 3 meters ( price per 1 meter )
3. Bundle cutting attachment
     (Min.140mm width / No min. height restriction)
4.
Laser Line Pointer
5.
Machine Lamp
  Components Makes:

1. Motor with Helical Gear Box  - Watt Drive
2. AC variable Drive  - Hitachi
3. Hydraulic Pump and Valves  - Kladivar Parker
4. Programmable Logic Control  - Siemens S7- 200
  ►Contact us for more information
PE-TRA Bandsaw Machine Features
Saw Bed:
Designed & engineered to perfection with vision & experience, Petra Bandsaw's Fabricated steel base is manufactured from Laser Cut Sheet Metal. All bed parts are pressed & welded neatly. Every care is taken to make it rigid by supporting it with beam at required points. Column base (very near to centre of gravity, makes it most stable machine) machined & milled accurately for the lifelong error free performance.
Power transmission:
Looking to its high end cutting applications using Carbide Blades, DC300A Power CNC Band saw mchines are equipped with a powerful helical geared drive of 4 kW, makes it the most powerful and the efficient machine in this catagory. It is  integrated with an 5,5 Kw Inverter for infinitely variable blade speeds.
Columns:

Cold drawn solid columns precisely machined for accurate results & speeds. These square columns give better stability while cutting, because of its perfect structural design. Linear guides are mounted outward face of the columns enhances cutting feeds to the recognition levels. A Rack Pinion rail on the rear face eliminates both the influence of centre of gravity shift & cutting forces, which ultimately improves the overall performance of the machine.
Blade tensioning:
Tensioning is powered by hydraulic with easy to operate controls. Allows for very quick and convenient blade change A state of art hydraulic blade tensioning arrangement, calibrated for the required tension in the blade & hence avoiding undesirable stresses in the blade, which improves the tool life.  Its well engineered design makes it possible to align the wheels easily if needed.
Blade guide system:
Automatic movement of movable blade guide along with main vise. Movable blade guide moves on wide and strong Linear motion guideway,which provides large area of contact and highly engineered assembly, eliminates vibrations in movable blade guide. Both blade guides are straight having no cantilever joints, correctly aligned with the cutting line & hence guiding the blade to cut straight. Also blade guide slot is pre-designed & defined which allows the smooth blade movement, eliminating vibrations & achieves taper free cuts. No gap setting required for the carbide tip, while inserting the blade.The carbide tips & gap is pre-designed & for life.

A hydulic lock locks the movable blade guide arm automatically of these high performance machines, before start of the cutting, makes it a roubust guide for high speed and high feed cutting without vibrations.
 Bundle Clamping attachment  /  Nesting Fixture /
 Vertical Clamping system (Optional)
To cut bars in Bundle or to cut small diameter bars without slippage, these high performance machines are equipped with a strong, reliable and positive bundle cutting attachment or Nesting fixture.

Clamping vice (Vertical) is supported from both sides over columns and vertical motion is fully guided over Rack and Pinion. It makes it most sturdy vertical clamping system, with clamping force uniform over the width of the bundle.

Wire Brush:
Motorized & shaft mounted, fitted at predesigned angle.Assembly does not have any coupling & hence no maintainence.
Wheel Diameter:
This highly engineered machine model again comes as a winner in terms of price -performance ratio due to lot of unique features it has , along with big wheel diameter of 500 mm, among the biggest in its category in the world. VERY important for the durability of blades. Solid Driver & driven wheels are plasma cut to the size & precisely machined grooves at the surface gives required grip to the blade.
Hydraulics:
Powered by 0,75 kW, 6 l/min pump, Kladivar-Parker. During cutting the hydraulic system is idle which keeps the oil temperature at environmental level at all times and saves electricity. An efficient hydraulic system with 24V solenoid valves having LED results in easy diagnose of the problem at first hand, if occurs. Also it is saving the energy as pump goes off during feed & therefore maintaining oil quality for the longer periods.
Front discharge table:
For easy handling of cut pieces a solid plate table, 400 mm in length, is bolted on to machine base in front of the front clamping vise. It is fully coolant panned to return coolant to the machine.
Cutting Pressure / Feed rate:
The maximal cutting force is adjustable and automatically maintained at set level with built-in highly reliable, maintenance-free hydro-mechanical control system. The feed rate is adjustable through a front-end operated valve on the fixed guiding arm. Operator cannot damage the blade under normal operation. A well engineered Hydraulic Feeding system with a flexibility to adjust cutting force for a particular cutting application makes it an ideal machine with an enhanced tool life. This feature protects the tool from undue cutting pressures & saves the costly tool.
Chip Conveyor:
Chips are removed from cutting area to easy-to-empty container with automated chip conveyor Chips dry out returning the coolant to the system before released to chip tank. Coolant and chips are fully separated.
6" Touch Screen Colour Display and control console:
The ergonomically designed control console with touch screen display having well defined menu for ease in programming and operation. All keys are well designated conveniently located over the console.
Touch screen facilitates the Length programming for various batches with ease and also display real time Cutting rates and blade speed, enables operator to monitor and maneuver the machine.

This Touch screen can be programmed in various langauges as per customer's requirement.
Control Panel:
Automatic control is provided by SIEMENS. Clear layout and orderly marked wiring facilitates user friendly servicing.
Rear or Shuttle vise:
Its a neatly designed Shuttle vise and table. Clamping system is equipped with self adjusting shuttle vise. Clamping presure at feed vise is infinitely variable and can be set s per cutting application.All movable items are fully shielded for the safety. Gap between the rollers are covered, which prevent chips and small job ends to fall inside. Also it protects the hard chrome plated guide bars from chips etc, on which shuttle moves.
Length setting system:
Length setting system comprises of a powerful servo drive, which sets the target moving over Ball screw, makes it most precise system. This system proved its realiability through consistant results. This new generation system is integaretd with a drive, PLC and Touch screen to set the length for various batches. Maximum 10 nubers of batches can be programmed. Multi-indexing is automatic.
Coolant system:
Coolant tank is equipped with chip filteration and metal dust arrest system, keeps the down time low. Easy to clean tank, integrated with chip conveyor makes it possible to eaisly clean chip conveyor housing also.
►Technical details DC300 Power CNC
 Machine Features
 Standard Items
 Optional Accessories

 PE-TRA cuts AMPCO21
 An ultimate performance by PET-RA DC300A CutMaster

  Basic specifications:
Model   DC300A Power CNC
Cutting Capacity
 Round  300 mm
 Rectangular  300 x 300 mm
Drive Motor
 		 4 kW, with 5,5 kW inverter
Hydraulic Motor  0,75 kW, 6 l/min
Coolant Motor  0,1 kW
Hydraulic oil capacity  8 l
Bandwheel Diameter  500 mm
Blade Speeds  18 – 150 m/min Inf. variable speed
Blade Size  4150 x 34 x 1,1 mm
Coolant Capacity  80 l , recirculating
Feed Stroke
  400 mm
Multiple Indexing
  Automatic
Feeding Table Length
  1500 mm
Front Table
  400 (L) x 330 (W) mm
System Control
  Siemens S7-1200 PLC
Data Entry
  6" Colur Touch Screen
Size
 		 2100 x 2000 x 2000 mm
Net Weight  17000 N
Saw Frame, Power Transmission and Blade tensioning system:
The saw frame is inclined for 35 degrees which increases the lifetime of blades. The elevation control is realized with an encoder. This greatly reduces the time needed for the next cutting cycle.
Looking to its high end cutting applications using Carbide Blades, DC300A Power CNC Band saw mchines are equipped with a powerful helical geared drive of 4 kW, makes it the most powerful and the efficient machine in this catagory. It is  integrated with an 5,5 Kw Inverter for infinitely variable blade speeds.
Tensioning is powered by hydraulic with easy to operate controls. Allows for very quick and convenient blade change A state of art hydraulic blade tensioning arrangement, calibrated for the required tension in the blade & hence avoiding undesirable stresses in the blade, which improves the tool life.  Its well engineered design makes it possible to align the wheels easily if needed.
Automatic movement of movable blade guide along with main vise. Movable blade guide moves on wide and strong Linear motion guideway,which provides large area of contact and highly engineered assembly, eliminates vibrations in movable blade guide. Both blade guides are straight having no cantilever joints, correctly aligned with the cutting line & hence guiding the blade to cut straight. Also blade guide slot is pre-designed & defined which allows the smooth blade movement, eliminating vibrations & achieves taper free cuts. No gap setting required for the carbide tip, while inserting the blade.The carbide tips & gap is pre-designed & for life.

A hydulic lock locks the movable blade guide arm automatically of these high performance machines, before start of the cutting, makes it a roubust guide for high speed and high feed cutting without vibrations.
Hydraulic system:
Powered by 0,75 kW, 6 l/min pump, Kladivar-Parker. During cutting the hydraulic system is idle which keeps the oil temperature at environmental level at all times and saves electricity. An efficient hydraulic system with 24V solenoid valves having LED results in easy diagnose of the problem at first hand, if occurs. Also it is saving the energy as pump goes off during feed & therefore maintaining oil quality for the longer periods.
The down-feed cutting force is adjustable and automatically maintained at set level with built-in highly reliable, maintenance-free hydro-mechanical control system.
The feed rate is adjustable through a front-end operated valve on the fixed guiding arm.
Clamping:
Main vise has a heavy duty construction for clamping the job and is coupled with movable vise, hence always keeping gap between workpiece and blade guide to minimum. For easy handling of cut pieces a solid plate table, 400 mm in length, is bolted on to machine base in front of the front clamping vise. It is fully coolant panned to return coolant to the machine.
Its a neatly designed Shuttle vise and table. Clamping system is equipped with self adjusting shuttle vise. Clamping presure at feed vise is infinitely variable and can be set s per cutting application.All movable items are fully shielded for the safety. Gap between the rollers are covered, which prevent chips and small job ends to fall inside. Also it protects the hard chrome plated guide bars from chips etc, on which shuttle moves.
Cooling and chip removal:
Coolant tank is equipped with chip filteration and metal dust arrest system, keeps the down time low. Easy to clean tank, integrated with chip conveyor makes it possible to eaisly clean chip conveyor housing also.
Great care has been taken to remove the chips efficiently and in general to keep the machine as clear of chips as possible. Chips are removed from cutting area to easy-to-empty container with automated chip conveyor. The conveyor is activated at the start of the machine and runs contineously for the best cleaning. Chips and coolant are separated into two tanks.
Operation and safety:
The ergonomically designed control console with touch screen display having well defined menu for ease in programming and operation. All keys are well designated conveniently located over the console.
Touch screen facilitates the Length setting for various batches with ease and also display real time Cutting rates and blade speed, enables operator to monitor and maneuver the machine.
This Touch screen can be programmed in various langauges as per customer's requirement.
The saw may be operated in semi or fully automatic mode in which the automatic cutting cycle is synchronized with bar feed mechanism and clamping action.
The saw will automatically shut off in case that the blade breaks, the determined number of pieces have been cut or there is a loss of pressure in the hydraulic system.
Automatic control is provided by SIEMENS. Clear layout and orderly marked wiring facilitates user friendly servicing.
Machine is equipped with blade guards and awareness barriers for safety purposes according to CE norm.
Please contact us for more information on how PE-TRA DC300A CutMaster could help you solve your specific metal cutting needs.

Please click here to access our contact information . We would be pleased to discuss all metal cutting questions and other technical issues with you.
PE-TRA CutMaster Bandsaw Machine Features
 Saw Bed:
Designed & engineered to perfection with vision & experience, Petra Bandsaw's Fabricated steel base is manufactured from Laser Cut Sheet Metal. All bed parts are pressed & welded neatly. Every care is taken to make it rigid by supporting it with beam at required points. Column base (very near to centre of gravity, makes it most stable machine) machined & milled accurately for the lifelong error free performance.
 Power transmission:
 High efficiency power transmission to the saw thru Helical Drive, makes it the most efficient machine in this catagory. It is  integrated with an Inverter for infinitely variable blade speeds.
Columns:
Cold drawn solid columns precisely machined for accurate results & speeds. These square columns give better stability while cutting, because of its perfect structural design. Linear guides are mounted outward face of the columns enhances cutting feeds to the recognition levels. A Rack Pinion rail on the rear face eliminates both the influence of centre of gravity shift & cutting forces, which ultimately improves the overall performance of the machine.
 Blade tensioning:
Tensioning is powered by hydraulic with easy to operate controls. Allows for very quick and convenient blade change A state of art hydraulic blade tensioning arrangement, calibrated for the required tension in the blade & hence avoiding undesirable stresses in the blade, which improves the tool life.  Its well engineered design makes it possible to align the wheels easily if needed.

Blade guide system:
Guides provide flat carbide inserts. Both blade guides are straight having no cantilever joints, correctly aligned with the cutting line & hence guiding the blade to cut straight. Also blade guide slot is pre-designed & defined which allows the smooth blade movement, eliminating vibrations & achieves taper free cuts. No gap setting required for the carbide tip, while inserting the blade.The carbide tips & gap is pre-designed & for life.
Wire Brush:
Motorized & shaft mounted.Hence no coupling & without maintainence.
Wheel Diameter:
500 mm, among the biggest in its category in the world. VERY important for the durability of blades. Solid Driver & driven wheels are plasma cut to the size & precisely machined grooves at the surface gives required grip to the blade.
Hydraulics:
Powered by 0,75 kW, 6 l/min pump, Kladivar-Parker. During cutting the hydraulic system is idle which keeps the oil temperature at environmental level at all times and saves electricity. An efficient hydraulic system with 24V solenoid valves having LED results in easy diagnose of the problem at first hand, if occurs. Also it is saving the energy as pump goes off during feed & therefore maintaining oil quality for the longer periods.

Front discharge table:
For easy handling of cut pieces a solid plate table, 400 mm in length, is bolted on to machine base in front of the front clamping vise. It is fully coolant panned to return coolant to the machine.
Cutting Pressure / Feed rate:
The maximal cutting force is adjustable and automatically maintained at set level with built-in highly reliable, maintenance-free hydro-mechanical control system. The feed rate is adjustable through a front-end operated valve on the fixed guiding arm. Operator cannot damage the blade under normal operation. A well engineered Hydraulic Feeding system with a flexibility to adjust cutting force for a particular cutting application makes it an ideal machine with an enhanced tool life. This feature protects the tool from undue cutting pressures & saves the costly tool.
Feed stroke:
430mm, which is catering most of the jobs. If cut lengths are more than 430mm, machine has the facility of Multi-Indexing.
Chip Conveyor:
Chips are removed from cutting area to easy-to-empty container with automated chip conveyor Chips dry out returning the coolant to the system before released to chip tank. Coolant and chips are fully separated.
Panel:
Clear layout and orderly marked wiring facilitates user friendly servicing.
PLC:
System control is realized with SIEMENS S7-1200 PLC. -Real time feed rate is displayed -Real time Cutting rates is displayed
Rear or Shuttle vise:
Its a neatly designed Shuttle vise and table.All movable items are fully shielded for the safety. Gap between the rollers are covered, which prevent chips and small job ends to fall inside. Also it protects the hard chrome plated guide bars from chips etc, on which shuttle moves.
SIKO Meter:
To set the required cut length.Easily accessible to the operator. Its least count is 0.1 mm.
Coolant system:
Easy to clean tank, integrated with chip conveyor makes it possible to eaisly clean chip conveyor housing also.

►Technical details CutMaster Band Saw Machines
 Machine Features
 Standard Items
 Optional Accessories

 PE-TRA cuts AMPCO21
 An ultimate performance by PET-RA DC300A CutMaster

  Basic specifications:
Model   DC300A CutMaster DC420A CutMaster
Cutting Capacity
 Round  300 mm 420 mm
 Rectangular  300 x 300 mm 420 x 420 mm
Drive Motor

 		 3 KW (optional 4kW),
 with 3 kW Inverter
 7,1 KW ,
 with 5 kW Inverter
Hydraulic Motor  0,75 kW, 6 l/min  0,75 kW, 6 l/min
Coolant Motor  0,1 kW  0,1 kW
Hydraulic oil capacity  8 l  8 l
Bandwheel Diameter  500 mm  500 mm
Blade Speeds  20 – 120 m/min Inf. variable speed   20 – 120 m/min Inf. variable speed
Blade Size  4150 x 34 x 1,1 mm  4970 x 34 x 1,1 mm
Coolant Capacity  80 l , recirculating
 		 80 l , recirculating
Feed Stroke
 		 430mm(without Bundle attachment)
 400mm(with Bundle attachment)
 		 430mm(without Bundle attachment)
 400mm(with Bundle attachment)
System Controls
 Siemens S7-1200 PLC
 Siemens S7-1200 PLC
Size
 		2000 x2100 x1850 mm 2400 x 2500 x 1850 mm
Net Weight  16000 N  20500 N
Shipping Weight  16500 N  21000 N
Saw Frame, Power Transmission and Blade tensioning system:
The saw frame is inclined for 35 degrees which increases the lifetime of blades. The elevation control is realized with the Return Height Limiter. This greatly reduces the time needed for the next cutting cycle.
The blade is powered by heavy duty helical drive, which has high power transmission efficiency. This gear is very high quality, practically maintenance free and comes with worldwide guaranty and support coverage. The blade speed is infinitely variable from 20–120 m/min controlled by  AC variable frequency drive.  The machine comes standard with inverter.
Blade tensioning is hydraulic and factory per-set. It comes with a tension control indicator and release valve for easy blade exchange. For a prolonged time of no activity the blade tension can be released.
The blade guide system uses flat carbide inserts.
Hydraulic system:
Hydraulic pump and electro-mechanical valves are from Kladivar- Parker The hydraulic system uses 0,75 kW motor, 6 l/min pump. During cutting the hydraulic system is idle which keeps the oil temperature at environmental level at all times and saves electricity.
The down-feed cutting force is adjustable and automatically maintained at set level with built-in highly reliable, maintenance-free hydro-mechanical control system.
The feed rate is adjustable through a front-end operated valve on the fixed guiding arm.
Clamping:
Main vise has a heavy duty construction for clamping the job and comes with adjustable clamping pressure to facilitate clamping of solids to thin walled tubes.For easy handling of cut pieces a solid plate table, 330 mm in length, is bolted on to machine base in front of the front clamping vise. It is fully coolant panned to return coolant to the machine.
The automatic feed system is equipped with automatic floating (self-adjusting) shuttle vise feed system with rollers and mechanically adjustable, up to 430 mm feed stroke capability with multi-indexing facility. The saw comes standard with 1,5 m long roller table with load capacity 10000 N.
Cooling and chip removal:
The coolant system accommodates 80 liters of coolant and uses 100W centrifugal, sealed pump. The coolant is dispensed through fixed and guided arm. The chips are removed from the blade with Direct Mounted Powered brush continually flushed by cooling fluid.
Great care has been taken to remove the chips efficiently and in general to keep the machine as clear of chips as possible. Chips are removed from cutting area to easy-to-empty container with automated chip conveyor. The conveyor is activated at the start of the machine and runs contineously for the best cleaning. Chips and coolant are separated into two tanks.
Operation and safety:
Control console with clear layout of control keys and switches is located on the left side and in front of the machine for operator convenience. A back-lit display unit on the consol makes it convenient for the operator to preset  number of the pieces cut, Multi-indexing. Operator can keep a tab on the alarms if any being displayed.
The saw may be operated in semi or fully automatic mode in which the automatic cutting cycle is synchronized with bar feed mechanism and clamping action.
The saw will automatically shut off in case that the blade breaks, the determined number of pieces have been cut or there is a loss of pressure in the hydraulic system.
Computer control is realized with SIEMENS S7-1200 PLC.
Machine is equipped with blade guards and awareness barriers for safety purposes according to CE norm.
Please contact us for more information on how PE-TRA DC300A CutMaster could help you solve your specific metal cutting needs.

Please click here to access our contact information . We would be pleased to discuss all metal cutting questions and other technical issues with you.

►DC300 POWER CNC Standard Items and Optional Accessories

Basic Machine includes the following standard items:
1.
 Cold Drawn Solid columns precisely machined for accurate results & speed.
2. High efficiency power transmission to the saw through Heavy duty helical Drive, 4 KW motor. (5,5 Kw Inverter)
3.
 Blade speed selection through 5,5 Kw AC variable frequency drive (18-150 m/min).
4. High efficiency Hydraulic Power Pack
5. Hydraulic Main vise & shuttle vise
6. State of art Hydraulic Blade tensioning
7. Electrically driven swarf conveyor
8. Infinitely variable feed control valve for setting the cutting rate
9. Electronic arm height limiter
10. Direct shaft mounted blade cleaning Motorized wire brush, mounted at pre-designed angle
11.
 Sytem Control- Siemens
12 6 inch Colour Touch Screen (Siemens) with menu.
13. Real time Feed rate and cutting rate display
14. Length programming through Touch Screen (Max.10 programs) and automatic Multi-indexing.
15. Auto Indexing shuttle of stroke length 400mm & synchronised with auto cycle
16. Automatic blade guide movement with the main vise. Blade guide movement is on LM guide ways.
Left Blade guide arm automatic hydraulic locking.
17. Specially designed fixed blade guide
18. Ergonomically designed Electrical Control Panel
18. Automatic Machine OFF, in case of blade breakage
19. All safety features as per CE requirements.
  Optional Accessories:
1.

Extended roller table 3 m long with coolant tray

Extended lenght over 3 meters ( price per 1 meter )
2. Bundle cutting attachment
     (Min.140mm width / No min. height restriction)
3.
Laser Line Pointer
4.
Machine Lamp
  Components Makes:

1. Motor with Helical Gear Box  - EU Make
2. AC variable Drive  - EU Make
3. Hydraulic Pump and Valves  - Kladivar Parker/Rexroth
4. Programmable Logic Control  - Siemens
  ►Contact us for more information

►Optional Accessories
Bundle clamping system / Nesting Fixture / Vertical Clamping
To cut bars in Bundle or to cut small diameter bars without slippage, these high performance machines are equipped with a strong, reliable and positive bundle cutting attachment or Nesting fixture.

Clamping vice (Vertical) is supported from both sides over columns and vertical motion is fully guided over Rack and Pinion. It makes it most sturdy vertical clamping system, with clamping force uniform over the width of the bundle.
Special Bundle clamping system for small diameter bars
PETRA Machines has designed and developed a Clamping System for Small Diameter bars in Bundle, which effectively hold the bars in position, allow machine to cut at optimum speeds and feeds,avoid burrs and increases the durability of the blade.


Front
 Back
This Clamping system for Small diameter bars in bundle has been successfully integrated with PETRA Machine's standard  Dual Column Bandsaw Machine Model DC300A.
Anyone cutting the small diameter bars in bundle knows,how difficult to cut. Practically speaking,it is not from the point of view of 'Cutting difficulty' of these diameter bars, but from the point of view of the its end result and henceforth its cutting and operational cost.
The main problem occur in a normal standard machine(even after using a correct TPI blade, speed and feed) are:
01.Burrs on the face of the cut piece.
02.Some times one of the bars in the bundle rotates and damages the blade.
03. Reduction in the blade durability.
Normal working pressure in a standard bandsaw may be 40bar, which may exert a force of 1 ton and this force is very high as far as 12 mm dia bars clamped in bundle is concerned.This high pressure tend to make the bundle gets disturbed and bars may jump of or even rotate.
At PETRA Machines, we analyzed these problems and concluded to have a reduced clamping pressure in the Feeding vise and a top guide at the shuttle vise, which would not exert any pressure on the bars, but shall touch the bars and restrict their upward movement and most importantly an extra vertical clamp just near to the blade at the exit. This clamp is a mechanical clamp with adjustments for various sizes and keeps the optimum pressure on the 'Cut lengths', to avoid any movement after the cut is over.
The unique feature of this clamp is , to reduce the feed at the 'near end of the cut' to avoid any damage to the bar edges.

The machine is already having its standard vertical clamp at the front vise, behind the blade line.This comprehensive clamping system for such applications, has given the best results in terms of , nearly eliminating the burrs at the edges and improvement in tool life, with optimum speeds and feeds. Hence reducing the cutting time.
A 12mm diameter bundle (12mm dia x 14 no bars in a single row bundle) takes only 12 seconds to cut, mainitaining the excellent surface finish and durability of the blade.The results are excellent and encouraging too for other small size below 35mm diameter.

►ROLLER TABLE:

►LASER LINE POINTER:
►MICROMIST COOLANT ATTACHMENT:
►PHOTO-SENSOR FOR AN ADDED SAFETY:
►GSM COMMUNICATION LINK FOR PLC:
GSM Interface helps in diagnosung problem online.
►INDUSTRIAL VACCUM CLEANER:
For cleaning the working space.
 ►Contact us for more information
►ToolMaster DC300 and DC420 - Standard Items and Optional Accessories
►Basic Machine includes the following standard items:
 1.   Cold Drawn Solid columns precisely machined for accurate results & speed.
 2.   Power transmission to the saw thru heavy duty worm Drive
 3.   Blade speed selection thru AC variable frequency drive (20-110 m/min)
 4.   High efficiency Hydraulic Power Pack
 5.   Hydraulic Main vise & shuttle vise
 6.   State of art Hydraulic Blade tensioning
 7.   Auto movement of Blade guide.(Not available in basic model)
 9.    Auto locking of movable arm, after clamping.(Not available in basic model)
10.   Controls - Siemens PLC S7 1200.(Not available in basic model)
11.   Touch screen 4".(Not available in basic model)
12.  Programming of automatic main vice opening and arm UP after completion
       of job can be done.(Not available in basic model)
 7.   Electrically driven swarf conveyor
 8.   Infinitely variable feed control valve for setting the cutting rate
9. Direct shaft mounted blade cleaning Motorized wire brush, mounted at pre-designed angle
10. Adjustable dovetail type heavy duty movable blade guide with internal coolant flow
11. Specially designed fixed blade guide
12. Ergonomically designed Electrical Control Panel
13. Automatic Machine OFF, in case of blade breakage
14. Laser Line Pointer (optional)
19. All safety features as per CE requirements.
►Optional Accessories:
1.  Cutting depth setting switch
2.  Extended roller table of 3 m length with coolant tray
3.  Machine Lamp
4.  Laser line Pointer


►Components Makes for DC300 and XL:
1. Motor with Helical Gear Box  - Bonfiglioli or Varvel
2. HelicalDrive  - Watt Drive
3. AC variable Drive
  - Hitachi
4. Hydraulic Pump and Valves  - Kladivar Parker
►Contact us for more information

►ToolMaster Optional Accessories
►ROLLER TABLE:

►MICROMIST COOLANT ATTACHMENT:
►GSM COMMUNICATION LINK FOR PLC:
GSM Interface helps in diagnosung problem online.
►INDUSTRIAL VACCUM CLEANER:
For cleaning the working space.
 ►Contact us for more information

 ToolMaster DC300 XL - Semi-Automatic Machine
 Technical details
 Standard Items
 Optional Accessories
 Green Machine
AWARDED

 Why PE-TRA Band Saw Machine?                                     read more...

PE-TRA DC300XL ToolMaster was engineered for metal cutting task where there is no need for large scale automated cutting and flexibility for ad-hoc cuts is preferred. The XL version has extended columns that provides for cutting materials up to 320 x 520 mm dimensions. Along the longer axis the piece is first cut 300 mm deep and then turned for the rest of the cut. This model is particulary suitable for small tool shops with limited space.
Every engineering detail was carefully studied and benchmarked against the competition in its class.
A workpiece of size  500mm (H) x 320mm (W) x 40mm (T) can be cut directly without turning it upside down.
DC300XL is a True Dual Column heavy duty band saw. The original Dual Column design assures structural rigidity. The Patented solution for precise, parallel movement of the frame including Ball Rail System on both columns provide superior fine movement of the frame eliminating both the influence of the center of gravity and cutting forces on the frame while greatly reducing the total weight of the machine and also minimizing the inherent vibrations. This alone assures an “advantage by design” in comparison to its competition.

The end result is a very precise cut and quality of the cut surface.
Machine is equipped with blade guards and awareness barriers for safety purposes according to CE norm.
Please contact us for more information on how PE-TRA DC300 ToolMaster could help you solve your specific metal cutting needs. Please click here to access our contact information. We would be pleased to discuss all metal cutting questions and other technical issues with you.
 Basic specifications:
Model
 DC300XL ToolMaster
Cutting Capacity
 Round  300 mm
 Rectangular  300 x 300mm and (320 x 520 mm)*
Drive Motor

  3 KW
 400 V
Hydraulic Motor  0,75 kW, 6 l/min
Coolant Motor  0,1 kW
Hydraulic oil capacity  8 l
Bandwheel Diameter  500 mm
Blade Speeds  20 – 120 m/min Inf. variable speed
Blade Size  4150 x 34 x 1,1 mm
Coolant Capacity  80 l , recirculating
Size  1100 x 2100 x 1850 mm
Net Weight  14000 N
Shipping Weight  15000 N
 320 x 520 mm*- Rectangle of 320Wx520H can be cut in two settings.In 1st setting, machine  takes  a cut up to 300 mm height and auto switch will make machine to stop. Then job to be clamped upside down.A laser line pointer is provided to match the cutting line. Now machine shall cut the remianing height of the job

  Technical details:
Saw Frame , Power Transmission and Blade Tensioning System:
The saw frame is inclined for 35 degrees which increases the lifetime of blades. The elevation control is realized with the Return Height Limiter. This greatly reduces the time needed for the next cutting cycle.
The blade size is conveniently 4150 x 34 x 1,1 mm. These provides for significant saving in cost per blade.
The blade is powered by 3 KW electric motor with Bonfiglioli warm gearbox or Valvel Warm Gear Box . This gear is very high quality, practically maintenance free and comes with worldwide guaranty and support coverage. The blade speed is indefinitely variable from 20–120 m/min controlled by  Hitachi . The machine comes standard with  inverter.
Blade tensioning is hydraulic and factory per-set. It comes with a tension control indicator and release valve for easy blade exchange. For a prolonged time of no activity the blade tension can be released.
The blade guide system uses flat carbide inserts.
The down-feed cutting force is adjustable and automatically maintained at set level with built-in highly reliable, maintenance-free hydro-mechanical control system.
The feed rate is adjustable through a front-end operated valve on the fixed guiding arm.
Clamping:
Main vise is of Heavy Duty construction with adjustable clamping pressure makes it convenient to clamp Solids to thin walled tubes.
For easy handling of cut pieces a solid plate table, 400 mm in length, is bolted on to machine base in front of the front clamping vise. It is fully coolant panned to return coolant to the machine.
Cooling and chip removal:
The coolant system accommodates 80 liters of coolant and uses 100W centrifugal, sealed pump. The coolant is dispensed through fixed and guided arm and in the area of cleaning brush.
The chips are removed from the blade with Direct mounted powered brush continually flushed by cooling fluid.
Chips are removed from cutting area to easy-to-empty container with automated chip conveyor. The conveyor is activated at pre-set cycles which saves electricity and increases lifetime of the conveyor. Chips and coolant are separated into two tanks.
Operation and safety:
Control console with clear layout of control keys and switches is located on the left side and in front of the machine for operator convenience.
The saw operates in semi automatic mode. The saw will automatically shut off in case that the blade breaks or there is a loss of pressure in the hydraulic system.
Laser-line pointer is provided as standard equipment for easy alignment of the cut piece.
Machine is equipped with blade guards and awareness barriers for safety purposes according to CE norm.
Please contact us for more information on how DC300XL ToolMaster could help you solve your specific metal cutting needs.

Please click here to access our contact information . We would be pleased to discuss all metal cutting questions and other technical issues with you.

►DC300XL Standard Items and Optional Accessories
►Basic Machine includes the following standard items:
 1.   Cold Drawn Solid columns precisely machined for accurate results & speed.
 2.   Power transmission to the saw thru Helical Drive, 3KW motor
 3.   Blade speed selection thru AC variable frequency drive (20-110 m/min)
 4.   High efficiency Hydraulic Power Pack
 5.   Hydraulic Main vise & shuttle vise
 6.   State of art Hydraulic Blade tensioning
 7.   Electrically driven swarf conveyor
 8.   Infinitely variable feed control valve for setting the cutting rate
9. Direct shaft mounted blade cleaning Motorized wire brush, mounted at pre-designed angle
10. Adjustable dovetail type heavy duty movable blade guide with internal coolant flow
11. Specially designed fixed blade guide
12. Ergonomically designed Electrical Control Panel
13. Automatic Machine OFF, in case of blade breakage
14. Laser Line Pointer
19. All safety features as per CE requirements.
►Optional Accessories:
1. Helical Drive with 3 KW motor
2. Helical drive with 4 KW motor & 4KW invert
3. Cutting depth setting switch
4. Extended roller table of 3 m length with coolant tray
5. Extended lenght over 3 meters ( price per 1 meter )
5. Machine Lamp
►Components Makes for DC300 and XL:
1. Motor with Helical Gear Box  - Bonfiglioli or Varvel
2. HelicalDrive  - Watt Drive
3. AC variable Drive
  - Hitachi
4. Hydraulic Pump and Valves  - Kladivar Parker
►Contact us for more information

DC300XL Optional Accessories

3 meter long Roller table:
Laser
Micromist Coolant attatchment:
Photo-sensor for an added safety:
Industrial Vaccum Cleaner
For cleaning the working space.

Comments (63)
