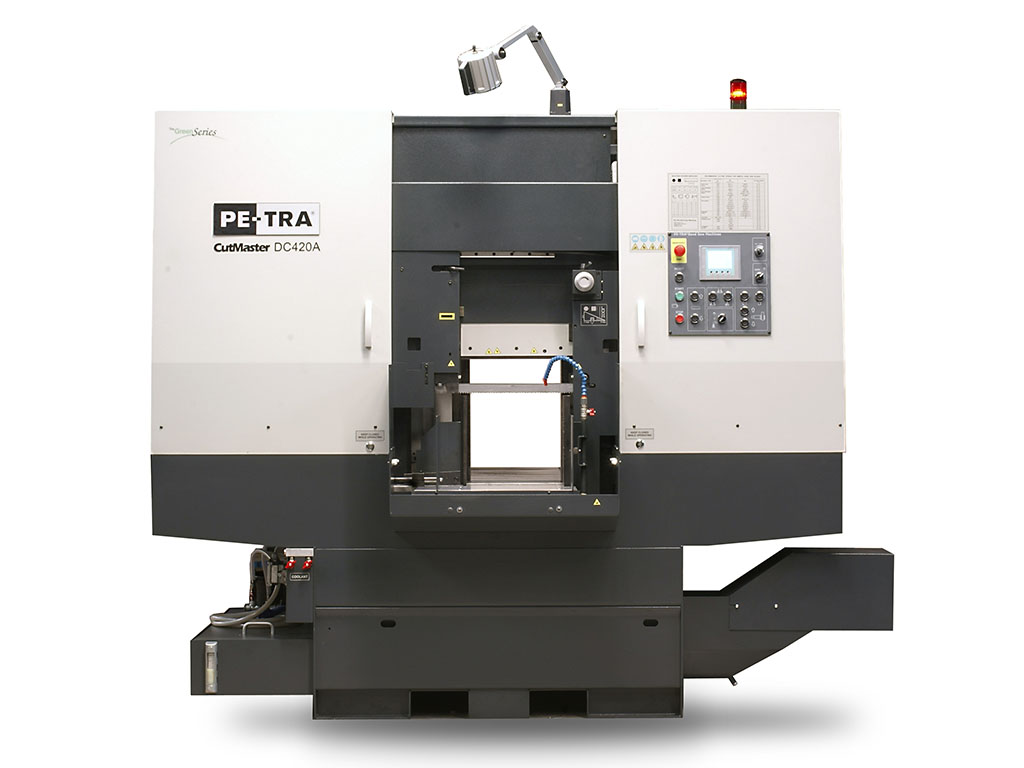

Fully automatic Power DC420CNC
POWER DC420 CNC is fully automatic, high performance, 24×7, Band Saw Machine. Batches of cutting jobs can be programmed through touch screen. The machine is designed, built and certified for high speed cutting with Carbide blades and, equally, for optimal use of bi-metal blades throughout its full cutting range. It offers unprecedented blade life under optimal cutting parameters.
Engineered at its best, this compact and user friendly Band Saw Machine ensures highly precise, perpendicular cuts with perfect geometry, high reliability and endurance. Built on PETRA’s proven, patent pending platform of Ball Rail System on both columns, machine offers motorized left arm as standard and integrated vertical clamping system as option. Rich HMI offers digital cut length settings and real time information such as cutting rate, down-feed, cutting history, and much more. Customer may even choose remote control through internet connection and/or SMS notifications as high end options.
| Cutting Capacity Round/Square | 420 / 420 x 420 mm |
| Drive and Inverter | 4 kW / 5,5 kW with inverter |
| Gear Box | Helical |
| Blade attack angle | 0 or 3,5 degree |
| Band Wheel Diameter | 500 mm |
| Infinitely variable blade speed | 18 – 120 m/min |
| System controls | Siemens S7-1200 PLC |
| Touch screen | 4″ Touch screen |
| Blade size | 4975 x 34 x 1,1 mm |
| Size L x W x H | 1350 x 2530 x 2030 mm |
| Net Weight | 1700 kg |
Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.
Specially designed, long life blade guides with internal coolant flow, factory adjusted
State of art automatic hydraulic blade tensioning
Blade attack angle (Blade approach angle) 0 or 3,5 degree adjustable through selector switch
Heavy duty, highly efficient helical gear box with axial-force free design
500 mm diameter, steel wheels
Quality cleaning gun
6 inch Color Touch Screen
Cycle sequencing thru Siemens S7-1200 PLC
Automatic Machine OFF, in case of blade breakage or loss of pressure
High Precision, real-time, maintenance free, down-force/down-feed HVM system
Heavy duty Hydraulic Main & shuttle vises
Mechanically adjustable return height sawing frame
Variable pressure in main vice
Vertical clamping
Machine lamp
Roller table
Chip removal System
